Part: User Interface of JavaView

Chapter: Inpectors

Section: Material Panels

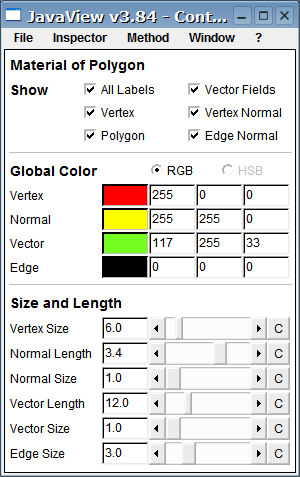

Subsection: Material Panels - Polygons / Polygon Sets


Show
All Labels The labels of all vertices are shown all at one time. That can be a real mess if the point set is dense and you are looking from far away! But it is immense helpful sometimes.
Vector Fields In case the point set has a vector field assigned to it's vertices it is shown as parts of straight lines. They can be made to small arrows by Method --> Show --> Show Arrow of Vectors.
Vertex All vertices are hidden in case this checkbox is not selected. That will make the point set invisible if it is not a part of an element set or polygon or something else.
Vertex Normal Shows/hides this particular vector field. Only available if vertex normals have been assigned to this point set.
Edge Shows/hides the edges that connect the vertices.
Edge Normals If activated the normals of the edges are shown.

Global Color
Set specific colors. Click the left mouse button on the colored field to open a color dialog that allows you to pick a color by the mouse. You can also define the RGB values of the color directly at the text fields to the right of the colored field.

Vertex Set the vertex color for all vertices of this geometry.
Normal Set the colors of all normal vectors of this geometries.
Vector Set the colors of all vectors of all assigned vertex based vector fields.
Polygon / Edge Set the edge color for all edges of this geometry.
Size and Length
Vertex Size Sets the diameter in pixels of all vertices of this geometry.
Normal / Vector Length The length of the normals/vectors in world metrics (should be one) is multiplied with this double value before they are projected.
Normal / Vector Size Width of the normals/vectors in pixels.
Edge Size / Polygon Size Sets the virtual thickness of the element edges in pixels.


Click into this applet and press Ctrl-m.
